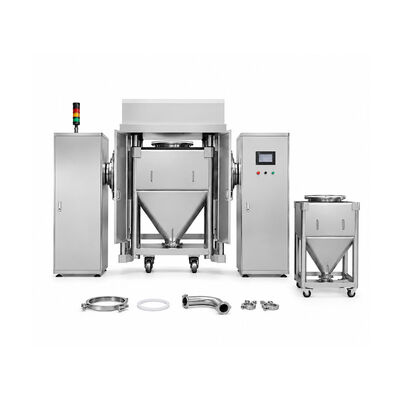

SS Pharmaceutical Mixing Equipment 3000L Automatic Lifting Hopper Mixture Machine
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | wooden case |
| Delivery Period: | 20-30 work days |
| Payment Method: | T/T,Western Union |
| Supply Capacity: | 10 Sets per month |
SS pharmaceutical mixing equipment
,pharmaceutical mixing equipment 3000L
,Automatic Lifting hopper mixture machine
Stainless Steel Automatic Lifting Hopper Mixer For Efficient Mixing
Description:
Specification:
|
Model |
ZTH-400 |
ZTH-600 |
ZTH-800 |
ZTH-1000 |
ZTH-1200 |
ZTH-1500 |
ZTH-2000 |
ZTH-3000 |
|
Hopper volume(L) |
400 |
600 |
800 |
1000 |
1200 |
1500 |
2000 |
3000 |
|
Maximum loading volume(L) |
320 |
480 |
640 |
800 |
960 |
1200 |
1600 |
2400 |
|
Maximum loading weight(kg) |
200 |
300 |
400 |
500 |
600 |
750 |
1000 |
1500 |
|
spindle speed(rpm) |
3-20 |
3-20 |
3-20 |
3-15 |
3-15 |
3-15 |
3-15 |
3-12 |
|
Rotary motor power(kw) |
4.0 |
4.0 |
4.0 |
5.5 |
5.5 |
7.5 |
11.0 |
15 |
|
Lifting motor power (kw) |
1.5 |
1.5 |
1.5 |
2.2 |
3.0 |
4 |
4 |
4 |
|
Machine weight(kg) |
1800 |
2500 |
2800 |
3000 |
3200 |
3600 |
4200 |
4800 |
Application:
This machine can automatically complete all actions such as lifting, clamping, mixing, and lowering. Equipped with one automatic lifting hopper mixer and multiple mixing hoppers of different sizes, it can meet the mixing requirements of large batches and multiple varieties, making it an ideal equipment for total mixing in pharmaceutical plants. It is also widely used in the pharmaceutical, chemical, and food industries.
Feature Advantage:
1. Interchangeable hoppers of different sizes adapt to varying batch production needs, reducing cross-contamination and improving equipment utilization.
2. Fully enclosed design prevents dust spillage, meeting pharmaceutical GMP cleanroom standards and avoiding material contamination and cross-contamination.
3. Three-dimensional motion mixing ensures no dead corners or stratification of materials, achieving a mixing uniformity of over 99% and good batch-to-batch consistency.
4. Separable and detachable hoppers eliminate cleaning dead corners, facilitating cleaning and disinfection and meeting the cleaning validation requirements for multi-product production.
5. PLC + touch screen control automatically completes processes such as hopper lifting, locking, mixing, and lowering, making operation convenient and reducing manual labor intensity.
