Fully Automatic Powder Mixer Pharmaceutical Powder Blender Single Column 15rpm

Fully Automatic Single Column Lifting Mixer For Hoppers Of Different Volumes

Description:

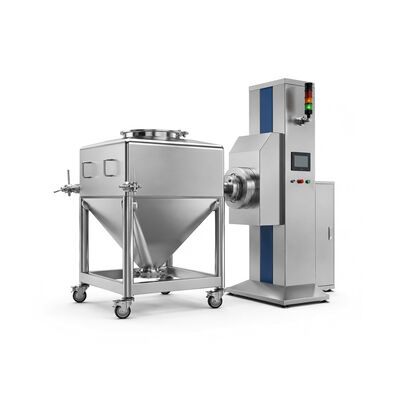

The machine consists of a column, base, rotary fork, drive system, brake system, and control system. The mixing hopper is pushed into the rotary fork and the locking nut is tightened. The control system is then activated, raising the hopper to the mixing height and reliably positioning it.The drive system automatically mixes according to set time, speed, and other data. Upon completion of the mixing operation, the rotary fork stops vertically, the hopper automatically descends to the ground, the entire machine stops, and process data is printed. Loosening the locking nut on the rotary fork allows the hopper to be pushed to the next process step.

The single-column lifting mixer uses a column-driven mechanism to lift and lock the hopper containing materials, which then rotates the hopper around a horizontal axis. Simultaneously, the material's own gravity and centrifugal force cause the powder/particles in the hopper to undergo convection, shearing, and diffusion, quickly achieving uniform mixing of different components.

Application:

Its core application is in the pharmaceutical industry, used in the premixing and final mixing processes of active pharmaceutical ingredients (APIs) and excipients in the production of tablets, capsules, and granules. It can also be used in the chemical, food, and health product industries for batch uniform mixing of powdered and granular materials, and is especially suitable for mixing materials that are prone to stratification and have large density differences. It can be integrated with upstream and downstream processes to achieve closed-loop conveying, mixing, and discharging.

Specification:

Feature Advantage:

1. Column-type structure design, small footprint, stable operation and low noise, suitable for workshop layout.

2. High mixing efficiency, compatible with hoppers of different volumes, achieving multi-purpose use and meeting continuous mixing operations.

3. Equipped with an infrared safety device to protect the mixing work area.

4. Touch screen control system, which can preset mixing time and speed, automatically completes the hopper lifting, locking, mixing, and lowering process, making operation convenient.

FAQ:

Q1: What types of pharmaceutical equipment do you manufacture?

We primarily manufacture a series of equipment for crushing, mixing, granulation, drying, coating, and cleaning, and provide complete production line solutions for industries such as health products, food, new energy, and chemicals.

Q2: Do you offer customized solutions?

Absolutely. We can customize equipment dimensions, capacity, control systems, material contact parts, feeding/discharging methods, and automation levels based on your specific production requirements.

Q3: Can your equipment comply with GMP requirements?

Yes. Our equipment is designed and manufactured in accordance with GMP standards. We use high-quality stainless steel materials (SS304 or SS316L), sanitary welding techniques, and easy-to-clean structures to ensure compliance with pharmaceutical production requirements.

Q4: What industries can use your equipment?

·  Pharmaceutical manufacturing

·  Nutraceutical production

·  Food processing

·  Chemical industries

·  Biotechnology applications

Q5: Do you provide installation and commissioning services?

Yes. We offer installation guidance, commissioning support, operator training, and technical consultation. Remote support and on-site services are available depending on project requirements.

Q6: How do I choose the right machine model?
Our engineering team can recommend the most suitable model based on:
· Product characteristics
· Batch size
· Production capacity
· Facility layout
· Automation requirements
· Regulatory standards
Simply contact us with your requirements for a free consultation.

Q7: What is the lead time for production?

The specific delivery time depends on the machine type and configuration. The exact delivery cycle will be confirmed during the quotation process.

Q8: How do you ensure product quality?

Each machine undergoes the following processes:

Raw material inspection

Precision machining

Functional testing

Quality inspection and Factory Acceptance Testing (FAT)

Only qualified equipment is delivered to the customer.
