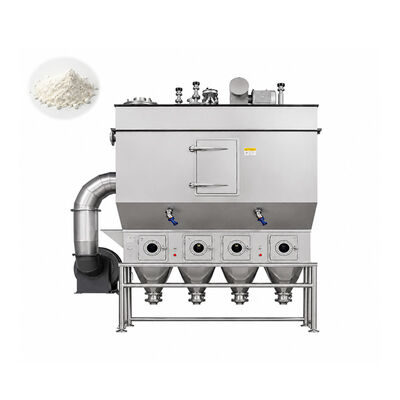

Automated Horizontal Fluidized Bed Dryer Fbd Pharmaceutical Dryer 48kw

Automated Horizontal Fluidized Bed Dryer For Drying Granular Materials

Description:

Also known as a fluidized bed dryer, it consists of an air filter, heater, fluidized bed main unit, cyclone separator, bag filter, high-pressure centrifugal fan, and control panel. Due to the different properties of the materials being dried, the dust removal equipment can be selected according to needs. A cyclone separator and a bag filter can be selected simultaneously, or only one can be chosen. Generally, for heavier materials such as granules and powders, only a cyclone separator is needed, while lighter granular and powdery materials require a bag filter. Pneumatic feeding devices and belt conveyors are also available as options.

The granular solid material is added to the fluidized bed dryer by a feeder. Filtered clean air is heated and then sent to the bottom of the fluidized bed by a blower, contacting the solid material through a distribution plate to form a fluidized state and achieve gas-solid heat and mass exchange. After drying, the material is discharged through the discharge port, and the exhaust gas is discharged from the top of the fluidized bed. The solid powder is recovered by the cyclone dust collector and the bag filter before being discharged into the atmosphere.

Application:

The XF horizontal fluidized bed dryer is a high-efficiency drying equipment designed specifically for granular materials. It is widely used in pharmaceutical, food, chemical, and feed industries. It can continuously fluidize dry various granular and powdery materials such as Chinese and Western medicine granules, chemical powders, food raw materials, and feed granules, effectively removing moisture while retaining the material's characteristics. It has high production efficiency and large processing capacity, making it especially suitable for large-scale industrial continuous production.

Specification:

Feature Advantage:

1. Fluidized bed dryers can be automated and are continuous drying equipment.

2. The drying process is fast and at low temperatures, ensuring product quality and meeting GMP requirements for pharmaceutical production. It can be used with steam, electric, or hot air furnaces.

3. Without high-speed mixing, the breakage rate is low, maintaining the spherical shape and fluidity of the particles.

4. It can be divided into a drying section and a cooling section, with one chamber for strong drying and the last chamber for cooling, making the process flexible.

FAQ:

Q1: What types of pharmaceutical equipment do you manufacture?

We primarily manufacture a series of equipment for crushing, mixing, granulation, drying, coating, and cleaning, and provide complete production line solutions for industries such as health products, food, new energy, and chemicals.

Q2: Do you offer customized solutions?

Absolutely. We can customize equipment dimensions, capacity, control systems, material contact parts, feeding/discharging methods, and automation levels based on your specific production requirements.

Q3: Can your equipment comply with GMP requirements?

Yes. Our equipment is designed and manufactured in accordance with GMP standards. We use high-quality stainless steel materials (SS304 or SS316L), sanitary welding techniques, and easy-to-clean structures to ensure compliance with pharmaceutical production requirements.

Q4: What industries can use your equipment?

·  Pharmaceutical manufacturing

·  Nutraceutical production

·  Food processing

·  Chemical industries

·  Biotechnology applications

Q5: Do you provide installation and commissioning services?

Yes. We offer installation guidance, commissioning support, operator training, and technical consultation. Remote support and on-site services are available depending on project requirements.

Q6: How do I choose the right machine model?
Our engineering team can recommend the most suitable model based on:
· Product characteristics
· Batch size
· Production capacity
· Facility layout
· Automation requirements
· Regulatory standards
Simply contact us with your requirements for a free consultation.

Q7: What is the lead time for production?

The specific delivery time depends on the machine type and configuration. The exact delivery cycle will be confirmed during the quotation process.

Q8: How do you ensure product quality?

Each machine undergoes the following processes:

Raw material inspection

Precision machining

Functional testing

Quality inspection and Factory Acceptance Testing (FAT)

Only qualified equipment is delivered to the customer.
