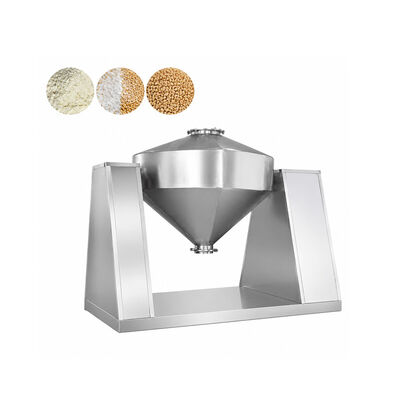

Square Cone Mixer For Pharmaceutical Food Chemical Powder Homogenization
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | wooden case |
| Delivery Period: | 20-30 work days |
| Payment Method: | T/T,Western Union |
| Supply Capacity: | 10 Sets per month |
Square Cone Mixer for pharmaceutical powder
,Powder homogenization mixer for food
,Chemical powder mixer with square cone
Square Cone Mixer For Pharmaceutical Food Chemical Powder Homogenization
Description:
|
Model |
FZH-300 |
FZH-500 |
FZH-1000 |
FZH-1500 |
FZH-2000 |
FZH-3000 |
|
Mixing bucket volume(L) |
300 |
500 |
1000 |
1500 |
2000 |
3000 |
|
Maximum loading volume(L) |
240 |
400 |
800 |
1200 |
1600 |
2400 |
|
Maximum charge weight(kg) |
150 |
250 |
500 |
750 |
1000 |
1500 |
|
Spindle speed(rpm) |
14 |
13 |
12 |
10 |
10 |
8 |
|
Motor power(kw) |
1.5 |
2.2 |
4 |
5.5 |
7.5 |
11 |
|
Machine weight(kg) |
600 |
750 |
1200 |
1650 |
2000 |
3000 |
|
Dimensions |
1850×1280 |
2200×1530 |
2800×2000 |
2930×2330 |
3300×2550 |
3800×3000 |
1. The rotating cylinder relies on material convection and diffusion for mixing, eliminating the need for an internal stirring paddle. The gentle mixing action prevents the crushing of fragile particles.
2. The unique square cone structure combined with the smooth curved surface of the cylinder allows for thorough material agitation.
3. Dual-sided frame support ensures a robust structure and low operating vibration.
4. External modules such as vacuum feeding, pneumatic discharge, and online sampling can be connected.
