Multifunctional Fluidized Bed Granulating And Coating Machine For Laboratory
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | wooden case |
| Delivery Period: | 20-30 work days |
| Payment Method: | T/T,Western Union |
| Supply Capacity: | 10 Sets per month |
multifunctional fluidized bed granulating and coating machine
,fluidized bed granulating and coating machine for laboratory
,multifunctional rotary granulator machine

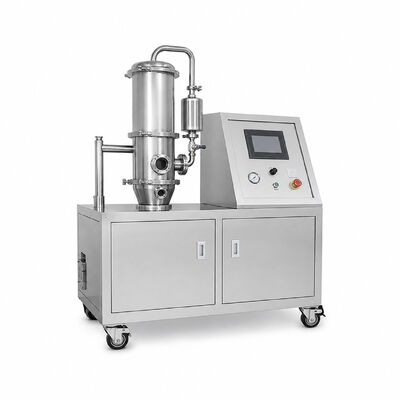

Multifunctional Fluidized Bed Granulating And Coating Machine For Laboratory
Description:
This machine consists of an air inlet system, a fluidized bed system, a top spray system, a bottom spray system, a side spray system, and an exhaust and dust removal system. The top spray is for granulation; the bottom spray is for micro-pellet coating; and the side spray is for micro-pellet production. All these functions are implemented on the same multi-functional fluidized bed granulator. Users can select the appropriate functions according to their actual production process requirements.
Purified hot air enters from the bottom, passing through an airflow distribution plate, causing the material to suspend and tumble within the hopper, forming a uniform "boiling" fluidized state for thorough mixing. Depending on the process, top, bottom, or side spray modes are selected to atomize the binder/coating liquid and spray it into the fluidized material. Through liquid bridging, the powder agglomerates into granules, or a uniform coating layer is applied to the granule surface. Hot air continuously removes moisture from the material, rapidly drying the wet granules or coating layer, ultimately yielding a finished product with good flowability and uniform moisture content.
Application:
This machine is a multi-functional granulator integrating top spraying, bottom spraying, and side spraying functions. It features mixing, drying, granulation, coating, and micro-pellet production. It is widely used in the pharmaceutical, food, and chemical industries.It can also be used for the exploration and verification of small-batch powder granulation and microcapsule coating processes.
Specification:
|
Model |
DPLS-0.2 |
DPLS-0.5 |
DPLS-1 |
DPLS-2 |
DPLS-3 |
DPLS-5 |
|
|
Raw material vessel volume(L) |
Top spray |
1.25 |
4 |
5.6 |
8 |
10 |
20 |
|
|
Bottom spray |
1.25 |
4 |
14 |
18.5 |
23 |
42.5 |
|
|
Side spray |
一 |
一 |
5.9 |
7 |
8.5 |
1.5 |
|
Production capacity (kg/batch) |
Top spray |
0.2 |
0.5 |
1 |
2 |
3 |
6 |
|
|
Bottom spray |
0.2 |
0.3 |
1.2 |
2 |
2 |
2.6 |
|
|
side spray |
一 |
一 |
1 |
1 |
2 |
2.4 |
|
Compressed air |
Pressure(MPa) |
0.4~0.7 |
0.4~0.7 |
0.4~0.7 |
0.4~0.7 |
0.4~0.7 |
0.4~0.7 |
|
|
Consumption(kg/h) |
0.15 |
0.15 |
0.15 |
0.5 |
0.5 |
0.5 |
|
Fan power(kW) |
0.75 |
1.85 |
3 |
4 |
4 |
5.5 |
|
Feature Advantage:
1.This multi-functional machine can complete multiple processes such as granulation, drying, and coating, making it suitable for laboratory-scale research and development needs.
2. Compact size, small footprint, easy to operate, wide adjustable parameter range, facilitating experimental formulation debugging.
3. Easy to disassemble and clean, quick to change materials, and meets the needs of multi-category sample processing.
4. Intelligent temperature and speed control ensures stable operation and strong experimental repeatability.
5. The hot air circulation is uniform, the material is heated gently, it is suitable for various heat-sensitive materials, and it is not easily deteriorated.
FAQ:
Q1: What types of pharmaceutical equipment do you manufacture?
We primarily manufacture a series of equipment for crushing, mixing, granulation, drying, coating, and cleaning, and provide complete production line solutions for industries such as health products, food, new energy, and chemicals.
Q2: Do you offer customized solutions?
Absolutely. We can customize equipment dimensions, capacity, control systems, material contact parts, feeding/discharging methods, and automation levels based on your specific production requirements.
Q3: Can your equipment comply with GMP requirements?
Yes. Our equipment is designed and manufactured in accordance with GMP standards. We use high-quality stainless steel materials (SS304 or SS316L), sanitary welding techniques, and easy-to-clean structures to ensure compliance with pharmaceutical production requirements.
Q4: What industries can use your equipment?
· Pharmaceutical manufacturing
· Nutraceutical production
· Food processing
· Chemical industries
· Biotechnology applications
Q5: Do you provide installation and commissioning services?
Yes. We offer installation guidance, commissioning support, operator training, and technical consultation. Remote support and on-site services are available depending on project requirements.
Q6: How do I choose the right machine model?
Our engineering team can recommend the most suitable model based on:
· Product characteristics
· Batch size
· Production capacity
· Facility layout
· Automation requirements
· Regulatory standards
Simply contact us with your requirements for a free consultation.
Q7: What is the lead time for production?
The specific delivery time depends on the machine type and configuration. The exact delivery cycle will be confirmed during the quotation process.
Q8: How do you ensure product quality?
Each machine undergoes the following processes:
Raw material inspection
Precision machining
Functional testing
Quality inspection and Factory Acceptance Testing (FAT)
Only qualified equipment is delivered to the customer.
