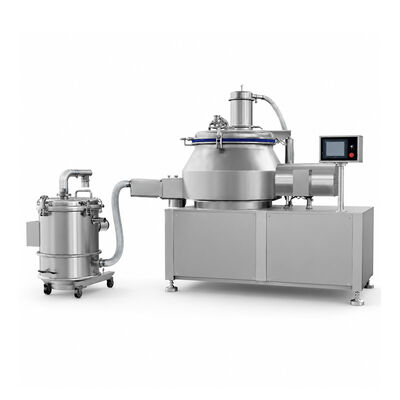

Dust Free Pharmaceutical Granulator Low Position 50L Granulation In Pharma Industry
| MOQ: | 1set |
| Price: | Negotiable |
| Standard Packaging: | wooden case |
| Delivery Period: | 20-30 work days |
| Payment Method: | T/T,Western Union |
| Supply Capacity: | 10 Sets per month |
50l granulation in pharma industry
,50l granulation machine in pharma
,dust free granulation machine in pharma
Closed Dust-free Low-position Wet Mixing Granulator With PLC Frequency Conversion Control
Description:
The material is added to the mixing container via a feeder or vacuum feeding system, where it is thoroughly mixed by multi-dimensional cutting by the agitator. Then, the binder is injected via a spray gun system or manually, and under the action of the agitator and cutter, it is formed into uniform granules. The granules are discharged through the outlet and transferred to the next process.
The powdered material is stirred by a paddle within the pot, undergoing a three-dimensional circulating motion to achieve uniform mixing. A metered amount of binder is evenly sprayed in through a spray system, wetting the powder and forming liquid bridges. A side-mounted high-speed cutter shears and crushes the wet material. Under the combined action of the centrifugal force of the paddle and the shearing force of the cutter, uniform wet granules with controllable particle size are formed. The discharge port is positioned lower, allowing direct connection to the next process (such as granulation or drying), reducing material transfer steps.
Specification:
|
Model |
DSH-10 |
DSH-50 |
DSH-150 |
DSH-200
200 |
DSH-250 |
DSH-300 |
DSH-400 |
DSH-600 |
|
|
Volume(L) |
10 |
50 |
150 |
|
|
|
|
|
|
|
Output(kg/batch) |
3 |
15 |
50 |
80 |
100 |
130 |
200 |
280 |
|
|
Mixing speed(rpm) |
300/600 |
200/400 |
180/270 |
180/270 |
180/270 |
140/220 |
106/155 |
80/120 |
|
|
Mixing power(kw) |
1.5/2.2 |
4.5/5.5 |
11/14 |
15/18.5 |
15/18.5 |
15/18.5 |
18.5/22 |
26/30 |
|
|
Cutting speed(rpm) |
1500/3000 |
1500/3000 |
1500/3000 |
1500/3000 |
1500/3000 |
1500/3000 |
1500/3000 |
1500/3000 |
|
|
Cutting power(kw) |
0.85/1.1 |
1.3/1.8 |
2.4/3 |
4.5/5.5 |
4.5/5.5 |
4.5/5.5 |
6.5/8 |
9/11 |
|
|
Compressed air consumption(m⁹min) |
0.6 |
0.6 |
0.9 |
0.9 |
0.9 |
1.1 |
1.5 |
1.8 |
|
Application:
This machine is one of the most commonly used process equipment in the production of solid dosage forms in the pharmaceutical industry. It has multiple functions such as mixing and granulation, and is widely used in the pharmaceutical, food, and chemical industries.
Feature Advantage:
1. The low discharge port allows direct connection to the next process, reducing material exposure and the risk of cross-contamination.
2. The entire process of mixing, spraying, and granulation is completed within a sealed container, resulting in low dust levels and compliance with GMP production standards.
3. Uniform granulation with good sphericity, excellent flowability, and high batch-to-batch consistency.
4. All parts in contact with materials are made of stainless steel with a polished inner wall for easy cleaning.
5. Equipped with a PLC + frequency converter control system, it allows for precise adjustment of stirring/cutting speed and spraying rate, and process parameters are traceable.
FAQ:
Q1: What types of pharmaceutical equipment do you manufacture?
We primarily manufacture a series of equipment for crushing, mixing, granulation, drying, coating, and cleaning, and provide complete production line solutions for industries such as health products, food, new energy, and chemicals.
Q2: Do you offer customized solutions?
Absolutely. We can customize equipment dimensions, capacity, control systems, material contact parts, feeding/discharging methods, and automation levels based on your specific production requirements.
Q3: Can your equipment comply with GMP requirements?
Yes. Our equipment is designed and manufactured in accordance with GMP standards. We use high-quality stainless steel materials (SS304 or SS316L), sanitary welding techniques, and easy-to-clean structures to ensure compliance with pharmaceutical production requirements.
Q4: What industries can use your equipment?
· Pharmaceutical manufacturing
· Nutraceutical production
· Food processing
· Chemical industries
· Biotechnology applications
Q5: Do you provide installation and commissioning services?
Yes. We offer installation guidance, commissioning support, operator training, and technical consultation. Remote support and on-site services are available depending on project requirements.
Q6: How do I choose the right machine model?
Our engineering team can recommend the most suitable model based on:
· Product characteristics
· Batch size
· Production capacity
· Facility layout
· Automation requirements
· Regulatory standards
Simply contact us with your requirements for a free consultation.
Q7: What is the lead time for production?
The specific delivery time depends on the machine type and configuration. The exact delivery cycle will be confirmed during the quotation process.
Q8: How do you ensure product quality?
Each machine undergoes the following processes:
Raw material inspection
Precision machining
Functional testing
Quality inspection and Factory Acceptance Testing (FAT)
Only qualified equipment is delivered to the customer.
